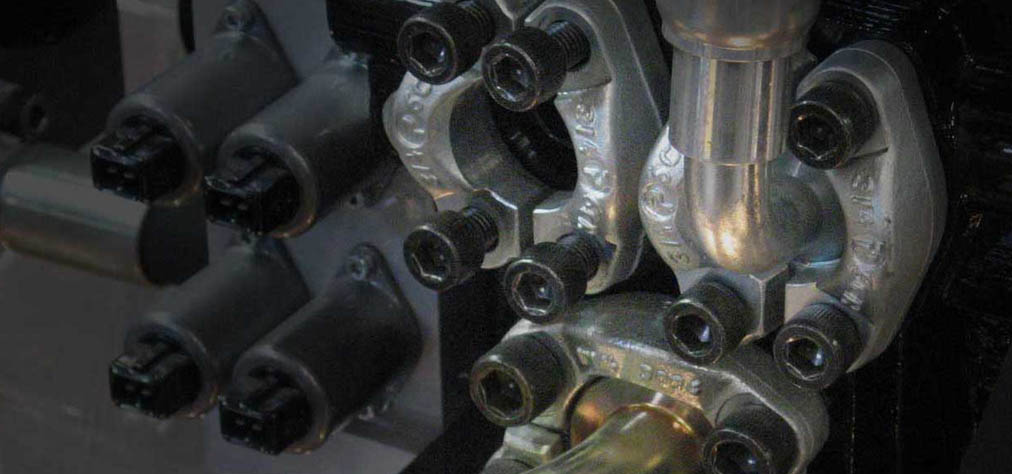

Samper Engineering Pvt. Ltd offers a variety of SAE Flanges, including one-piece
(Captive/Bride) Mono flanges, and split flange (Demi-Bride)clamps for use with flanged
hose ends or inserts. Our flanges are stocked in code 61 (which is 3000 psi) and
code 62 (which is 6000 psi) configurations in versions for socket weld and butt
weld. Female screwed version for BSP and NPT threads are also available. In one-piece
flanges, we offer both O-Ring half and flat-face half.

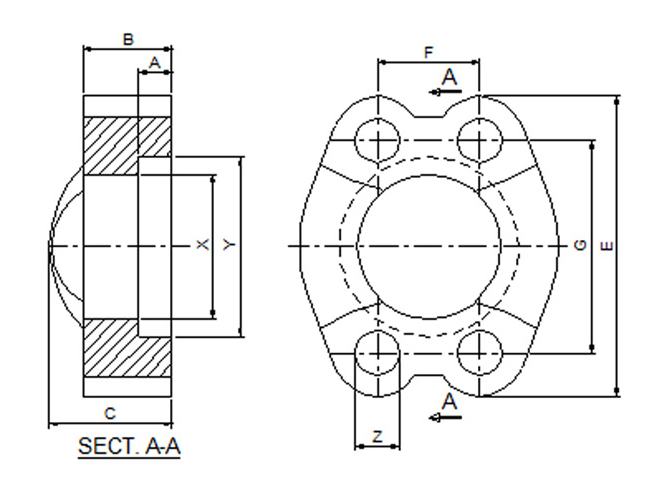

Types of Flanges Offered
Material
Depending on our customers, requirements, Samper is capable of producing products
from both carbon steel and stainless steel.
For carbon steel:
- SAE 1040 or En8D
- ST52-3
- C45
- Cr41
For stainless steel:
Surface Protection
- Chrome (VI) free Or Cr3 (Trivalent)
- Hexavalent chrome plating
- Zinc Nickel
Our standard finish for all flanges is blank steel with protection fluid against
rust.
Flanges which do not require welding can be supplied in a zinc passivated finish.
Flange Kits
Split flange clamps can be supplied as a flange kit complete with metric or UNC
bolts, spring washers, and 'o' ring. Metric bolts conform generally to Din 912-8.8
(ISO4762-8.8) or Din 912-10.9 (ISO4762-10.0) and UNC bolts conform generally to
ASA B18.3.
