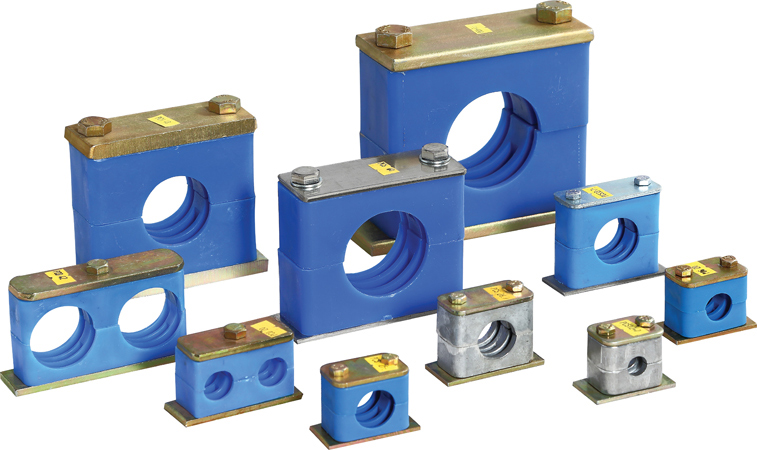

We are reliable exporters of a wide range of Tube Clamps. These are designed by our efficient technical experts and are extensively used in the industrial hydraulic systems, mobile hydraulic systems, process industries, and construction of electrical equipments. These are highly effective in reducing noise, lower vibration and are shock proof. The welded plates are coated with zinc. These are made available in diverse sizes and manufactured using quality polypropylene and polyamide materials.

Construction:

• Clamps are available in a wide range of sizes and materials
• Polypropylene is used for standard clamps and Polyamide (PA) or Aluminum (AL) for special applications
• The type clamps have rubber inserts for soft gripping of hose, pipe, and tubing
• clamps are designed as hose and tube supports for high cyclic pressure applications
• Weld plates are zinc coated. Stainless steel hardware is also available

Specifications:

• Material: Carbon Steel
• Duty top plates and heavy duty sizes 1 to 4
• Top plates: zinc plated

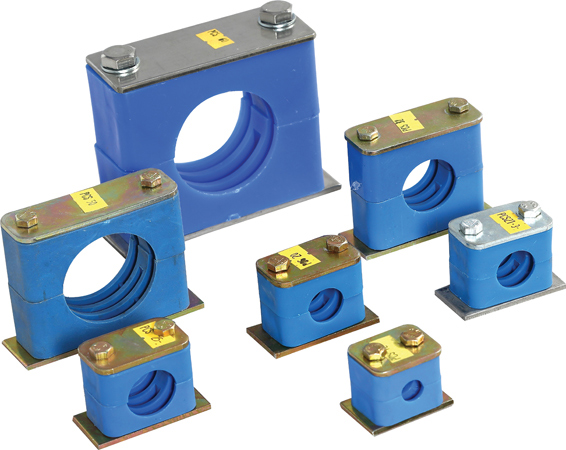

Standard Series Tube Clamp

tube clamp are best known tube clamp with sufficient strength this Tube Clamps are more suitable where hydraulic pipe lines are required to be straight in short as well as long length. Tube clamps are made out from high density polyethylene materials having good strength and mild steel plates.

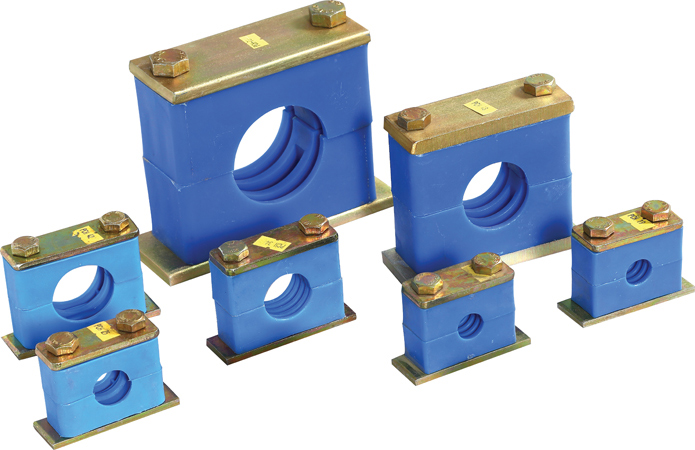

Heavy Duty Series Tube Clamps

Heavy series pipe clamps can withstand the shock and vibration that a hydraulic system operating at up to 5,000 psi can deliver. With the use of our Double Heavy design, lines with operating pressure of up to 10,000 psi can be accommodated. Standard hardware material is plain carbon steel. Also available from stock are 304SS and 316SS hardware. The heavy series can be mounted using a weld plate, rails, and stacking kits. Many other options are possible with existing hardware and custom arrangements are always a possibility.

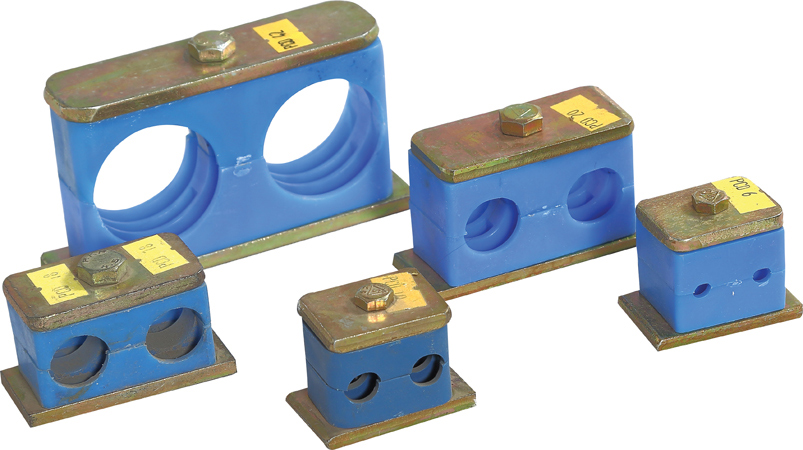

Twin Series Tube Clamps

The clamps are available as Twin Tube Clamps in five standard sizes for normal mechanical requirements. Outer tube diameter 6 to 42 mm.The clamp body is available in a square/open design.Welding plates, rail-support, cover plates and construction types.Clamp halves with different diameters are only possible when used together.

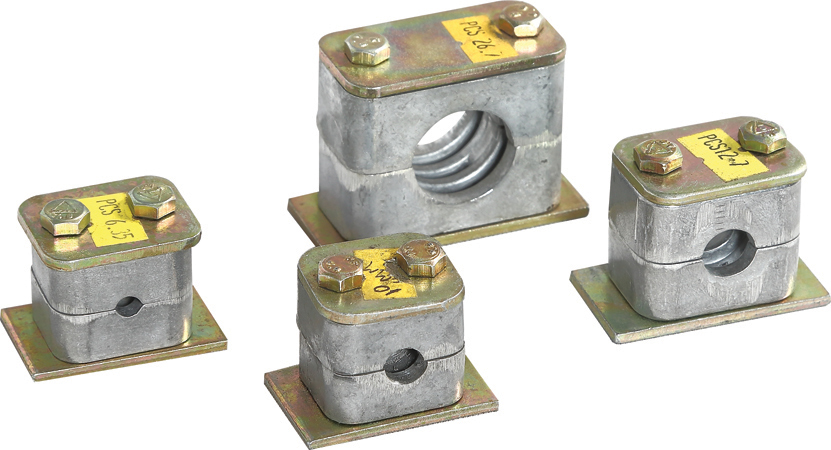

Aluminium Pipe Clamp

tube clamp are best known tube clamp with sufficient strength this tube clamps are more suitable where hydraulic pipe lines are required to be straight in short as well as long length. Tube clamps are made out from Aluminum materials having good strength and mild steel plates. Tube clamps are in various sizes.
